Features & Applications
Features
- Outsized performance – weighing in at just 8.1 kg (inc. B 22-170 battery), TE 60-22 has the drilling and chipping power you'd expect from a much heavier cordless rotary hammer
- Maximized working time per charge – brushless motor and more efficient Nuron batteries help you get up to 3x more battery run time
- Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Active Vibration Reduction (AVR) for increased shielding from vibration
- Longer trigger time – minimal vibration so that you can work with fewer interruptions
- On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow
Applications
- Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation
- Drilling holes for post-installed reinforcing bar connections in concrete (recommended diameter range 20-40 mm)

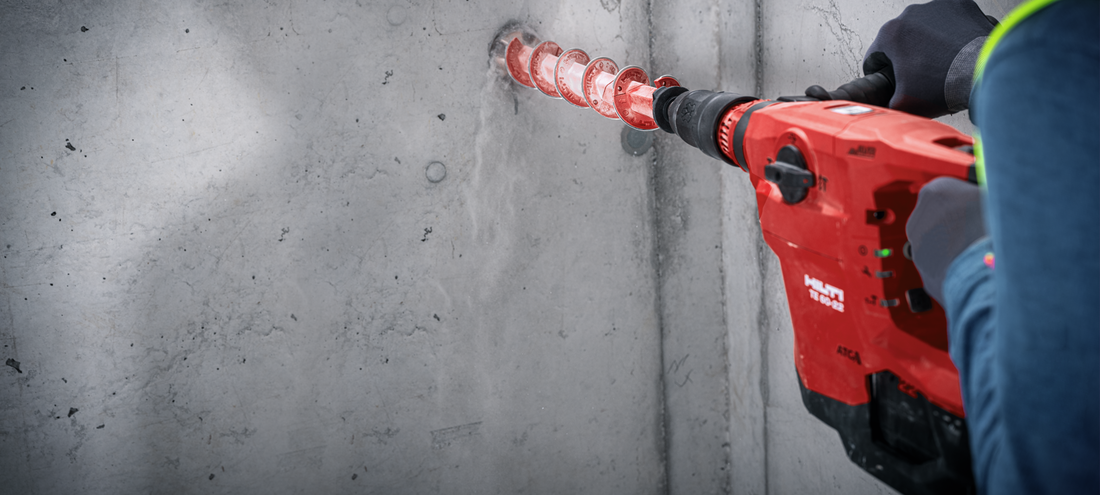

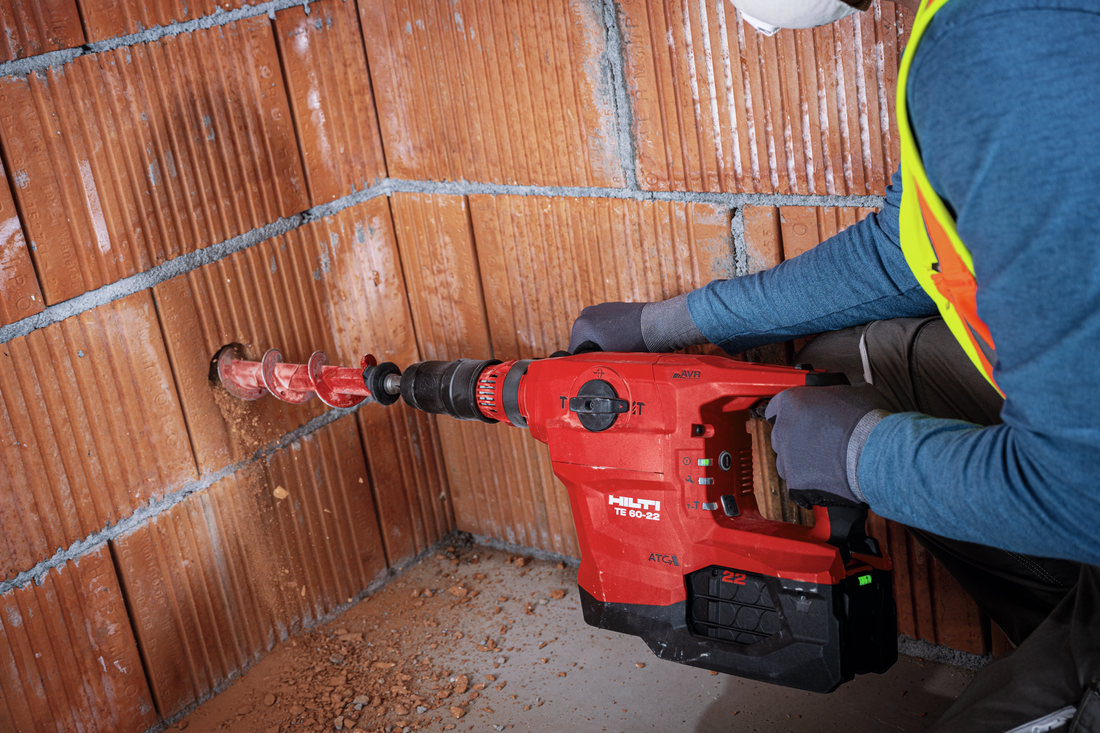

- Drilling holes for pipe penetrations or plug sockets through concrete and masonry

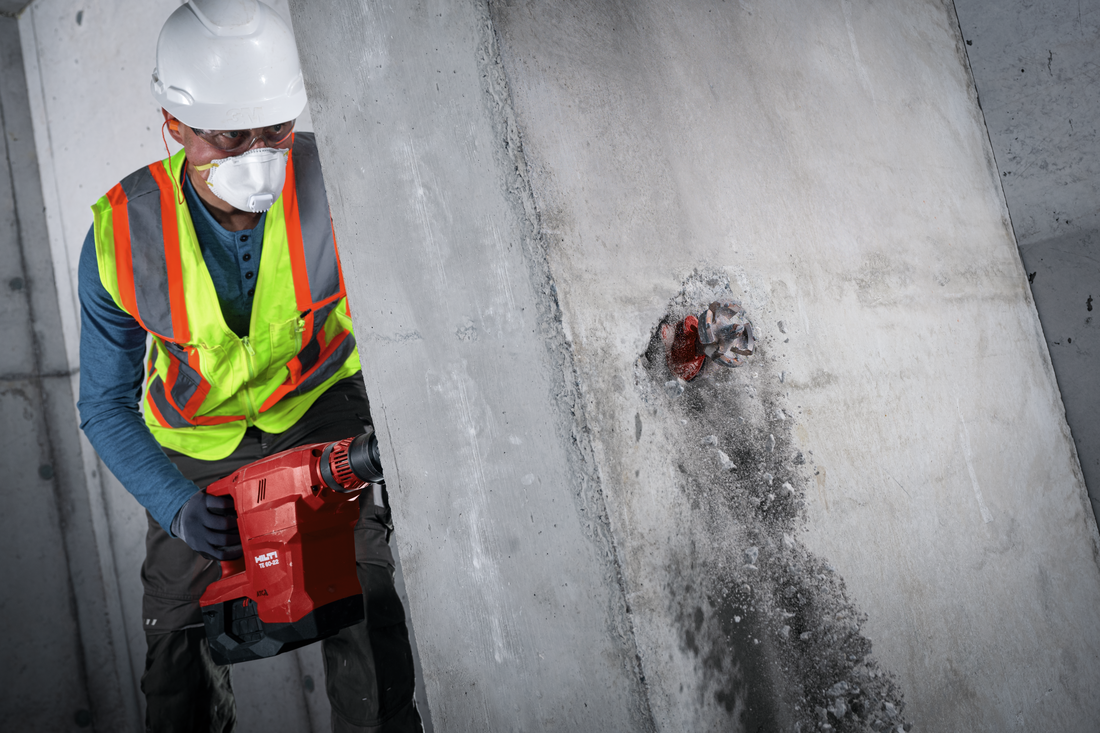

- Chiseling openings and channels in concrete or masonry
- Digging holes in earth – SDS Max clay spade available separately
PRODUCT INFORMATION
Cordl. combihammer TE 60-22
- Item Numbe : 2253098
- # of items in Package : 1
TECHNICAL DATA
- Weight according to EPTA Procedure 01/2003 : 6.3 kg
- Optimum hammer drilling range : 18 - 40 mm
- Hammer drilling diameter range :12 - 100 mm
- Rated voltage :21.6 V
- Single impact energy : 8.1 J
- Hammer drilling RPM :340 rpm
- Full hammering frequency : 3300 impacts/minute
- Functionality : Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiselling, Power reduction
- Triaxial vibration value for hammer drilling into concrete (ah,HD) : 10.7 m/s² 1
- Triaxial vibration for chiselling in concrete :9.1 m/s² 2
- Dust removal system available :TE DRS-Y, TE DRS-D
- A-weighted emission sound pressure level : 98 dB (A) 3
- A-weighted emission sound power level : 106 dB (A) 4
